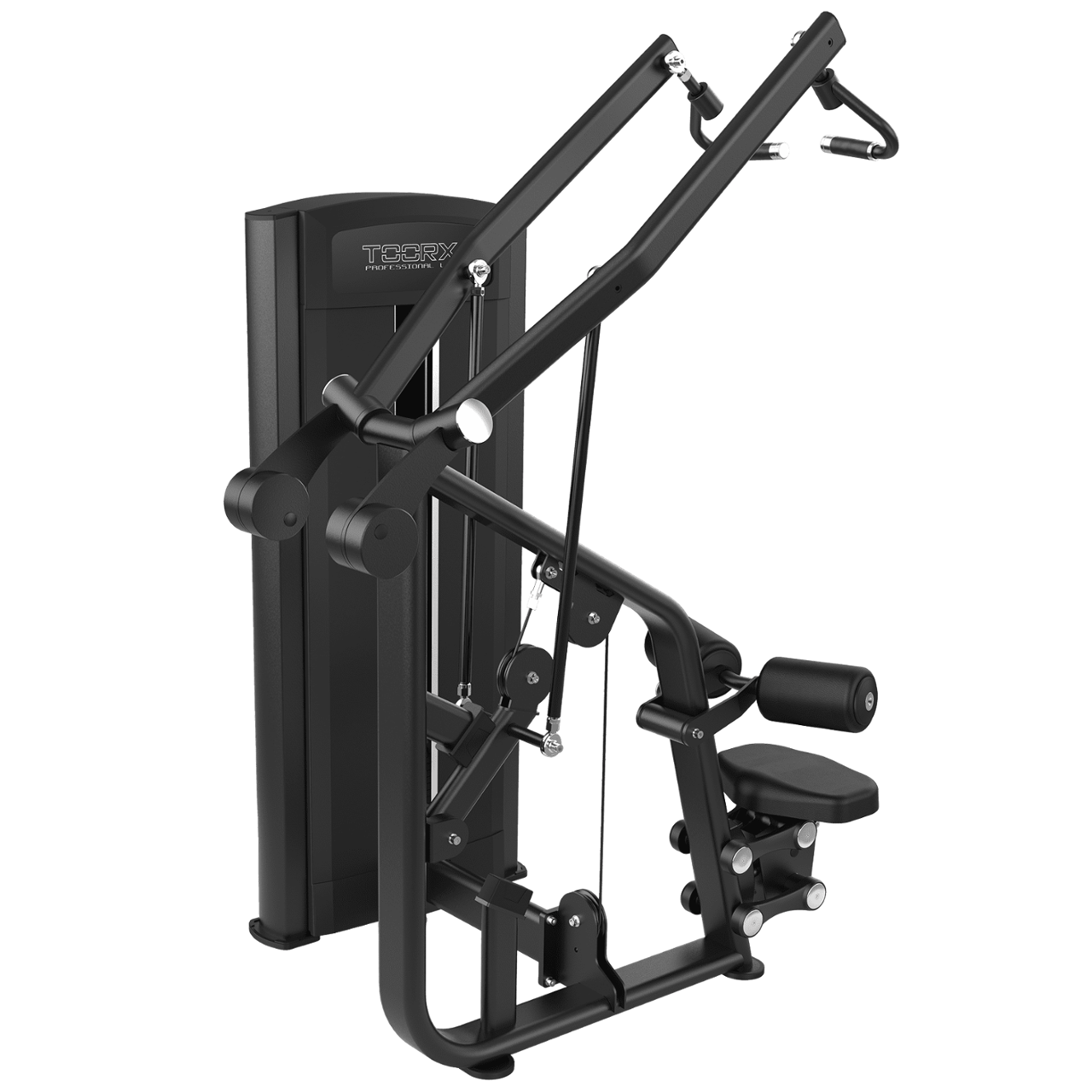

PLX-6390 DIVERGING LAT PULL DOWN

avant line pin loaded single function: PLX-6390 DIVERGING LAT PULL DOWN; NEW

DIVERGING LAT PULL DOWN; cod. PLX-6390

The images and data in the catalogue and in the site tabs may differ in some details from the originals

COMPARE

Technical data

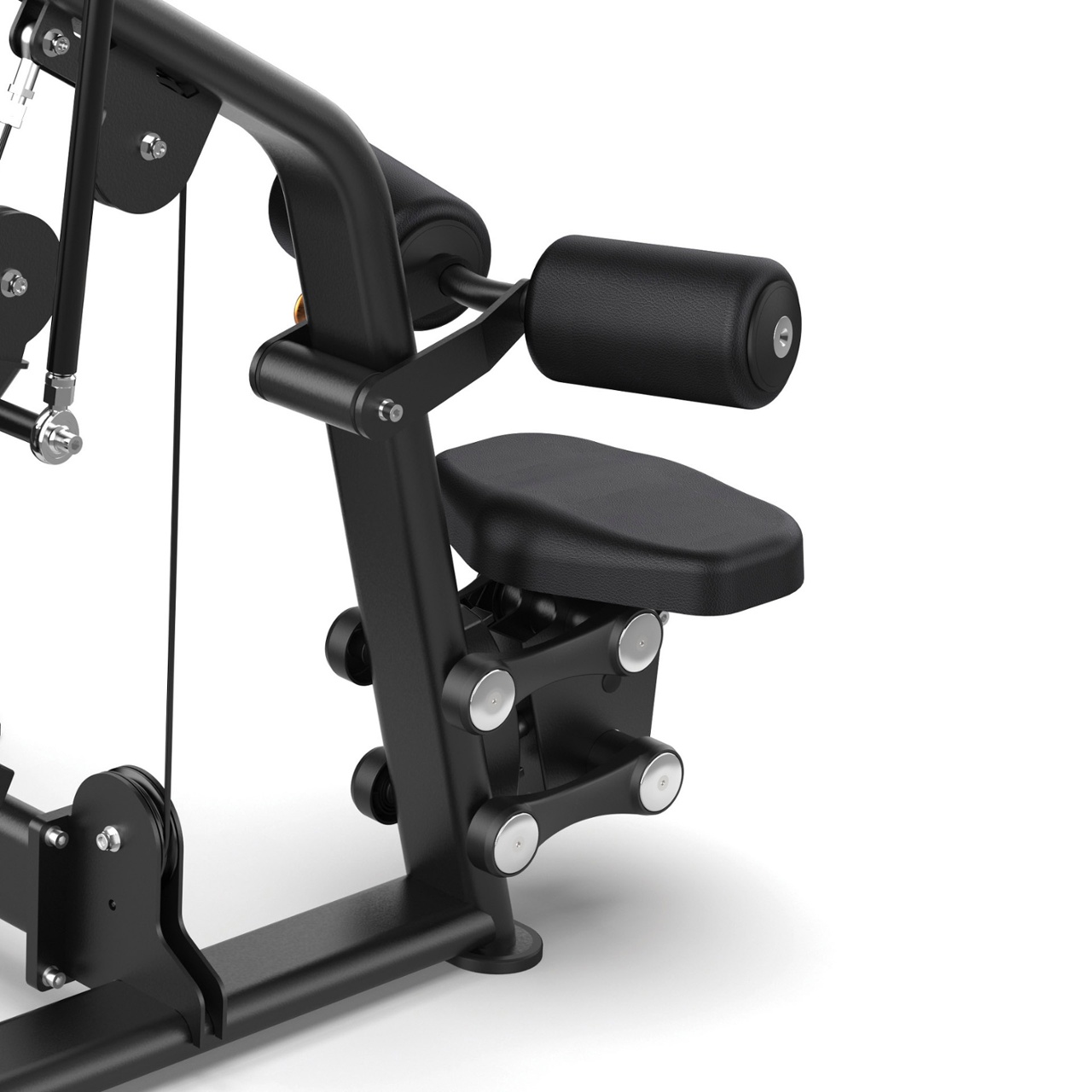

Saddle
Saddle	High-density foam cushions with PU upholstery and full back cover
Max user weight
Max user weight	150 Kg
Use
Use	COMMERCIAL USE
Characteristic
Characteristic	Weight stack steel 100 kg with full protection cage ADJUSTMENTS: seat height on 6-level, small force leverage on 7-level Pulley system made of POM, a very stiff material with low surface friction and good dimensional stability - PREMIUM GRADE bearings Cables system steel woven cables ø5.8 mm, max. loadable weight 1500 kg. Seat adjustment with pantograph system and aluminium arms
Frame
Frame	Structure oval flat heavy-duty steel tubing oval 75x118 mm e flat oval50x120mm, 40x80 mm, 50x100 mm - thickness 3 mm.
Weight
Weight	265 kg
Set up size
Set up size	1450 x 1180 x 2150 mm
Painting
Painting	Painting double heavy duty powder coating painting, scratch-resistant.Tubing treatment with sandblasting and phosphating process.
Compliances
Compliances	EN20957-1 / EN957-2 classe S
Product code
Product code	PLX-6390
EAN
EAN	8029975810485
